Monaro Marine Ltd.

Upgrading to the Monaro 27 from the ever-popular 24 model, offers boaters extra luxury and space. Standard sleeping for four in two separate private berths allows for longer cruising trips. As in all Monaro’s, berth lengths are 6’4” plus with stand up head and shower headroom at 6’3”. Trip lengths of one to two weeks are common amongst 27 owners. With the availability of custom deep freezers for the catch and hot water furnaces for creature comforts, your friends will be envious. If being totally dry under the hardtop plus having excellent visibility at cruise are important features to you – then this is your boat.

Photo Gallery

27 27 27 27 27 27 27
27 Aft Auxiliary Bench Cabin Companionway Companionway
Dash dash electrical Extended Forward Galley Galley
Galley Hard Hard Head Head Helm Hybrid
Lounge Stern Swim Swim Teak teak V-Berth
Volvo Volvo

Line Drawings

27 twin outboard

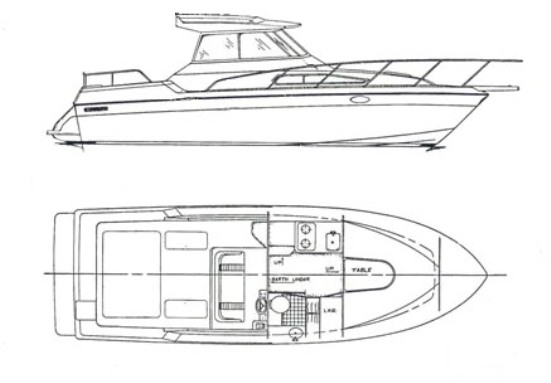

27 plan and profile

Monaro 27 with swim grid extension


Hull Length 27'0" 8.23 m
Overall Length* 30'11" 9.42 m
Beam 9'5" 2.87 m
Draft to Keel 22" 0.56 m
Draft: Drive Down 40" 1.02 m
Deadrise Aft 19 deg. 19 deg.
Approx. Dry Weight 8,700 lbs. 3,946 kg
Std. Fuel Tank 100 imp. gal. 455 l
Std. Water Tank 26 imp. gal. 118 l
Holding Tank 15 imp. gal. 68 l
Std. Engine Volvo V8-300 hp 209 kW
Headroom in Cockpit 6'4" 1.93 m
Max. Headroom in Cabin 6'8" 2.03 m
Headroom in Head 6'3" 1.91 m
V-berth Length 6'3" 1.91 m
Aft Berth Length 6'4" 1.93 m
Aft Berth Width 4'1" 1.23 m
*includes swim grid and bow sprit

Standard Equipment and Features

  • 5 year structural waranty on hull.
  • Vinylester resin skin coat in the hull layup to guard against water permeation.
  • All hand laid fibreglass in hull, deck and all other fibreglass parts.
  • Foam in cavity under floor.
  • Choice of interior fabric colors.
  • Three opening hatches in cabin overhead for ventilation.
  • Opening portlights in cabin side and hull.
  • Forward dinette converts to berth.
  • Spacious storage in v-berth under bunk and in side shelves.
  • Sleeping for four adults in two berths.
  • Privacy curtains across both berths.
  • Stand up head with shower.
  • Large chain and rope locker forward.
  • Full galley with ice box, 2 burner alcohol stove, hot and cold pressure water with stainless steel sink, two dish lockers, and built-in garbage bin.
  • Shore power with four 110v outlets.
  • Excellent 360 degree visibility from all seating at helm.
  • Walk-around side decks with hand rails on hard top for safe access to forward deck.
  • Dual windshield wipers.
  • Locking glove box in dash.
  • Hard top fixed to windshield to keep the rain and spray out.
  • Two helm seats mounted on height adjustable pedestals.
  • Fibreglass swim grid and transom door.
  • Removable cockpit floor for major servicing.
  • Self-bailing cockpit with deep troughs to drain water overboard.
  • Bennett hydraulic trim tabs.
  • Welded bow and stern rails bolted through the deck for strength and durability.
  • Two storage compartments at helm sides with fishing rod storage on one side.
  • Two lockers in cockpit floor with drains overboard.
  • Spacious engine compartment with 1" thick sound insulation on forward bulkhead and under hatch.

With every Monaro purchase, new or used, we will provide the owner with factory technical support for as long as you own the boat.

Option List

Every model has an extensive list of optional equipment available. If there is something you are looking for and don't see it on the list, ask us. It can probably be added. Engine options include gas or diesel stern drive or twin outboard. Click here to view the option list.
