MONARO 24

This is currently our most popular Monaro. We have been able to pack a lot of comfort into this compact cruising/fishing boat. Storage space has been well utilized for the adventuresome boaters who like to venture out for longer periods of time. A practical boat for trailering and with a very fuel-efficient hull shape, all makes for economical distant cruising. With optional diesel engine and diesel furnace, a cruising range of up to 500 miles in comfort is available to you.

Photo Gallery

24 24 24 24 24 24
24 24EX 24EXL 24EXL 24EXL 24EXL
24EXL 24EXP 255 Alaska Bow Cabinet
Cuddy Custom Dash Deluxe Deluxe Deluxe
Dinette Drop Fixed Full Full Full
Hull Porta Removable RXL Standard Standard
Stbd Stern Stern Swim Three Three
Volvo Volvo

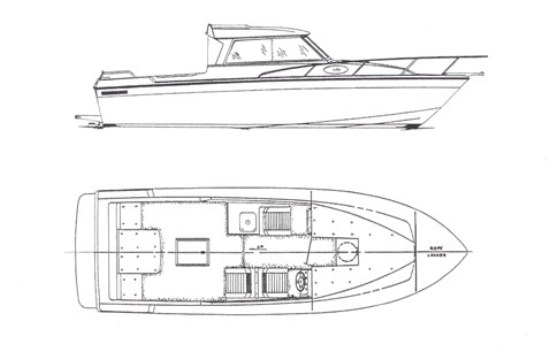

Line Drawings



24 line drawings





24 outboard drawing

Specifications

Hull Length 23'7" 7.19 m
Overall Length* 26'1" 7.95 m
Beam 8'0" 2.44 m
Draft to Keel 18" 0.46 m
Draft: Drive Down 36" 0.91 m
Deadrise Aft 20 deg. 20 deg.
Approx. Dry Weight 3900 lbs. 1,769 kg
Std. Fuel Tank 40 imp. gal. 182 l
Std. Water Tank 8 imp. gal. 36.4 l
Holding Tank 7 imp. gal. 31.8 l
Std. Stern Drive Engine Volvo V6-240 SX 179 kW
Std. Outboard Engine Yamaha 225XCA 168 kW
Min. Headroom in Cockpit 6'1" 1.85 m
Max. Headroom in Cockpit 6'11" 2.11 m
V-berth Length 6'5" 1.96 m
*includes swim grid and bow sprit, stern drive

Standard Equipment and Features

  • 5 year structural waranty on hull.
  • Vinylester resin skin coat in the hull layup to guard against water permeation.
  • All hand laid fibreglass in hull, deck and all other fibreglass parts.
  • Foam in cavity under floor.
  • Generous storage below berth.
  • Large opening hatch in cuddy for access and ventilation.
  • High freeboard in cockpit for safety.
  • Large chain and rope locker forward.
  • Spacious shelves in cuddy.
  • Very high visibility from helm.
  • Fresh water cooling on stern drive engine.
  • Wide side decks with hand rails on hard top for safe access to forward deck.
  • Dual windshield wipers.
  • Hard top fixed to windshield to keep rain and spray out.
  • Marine head.
  • Custom fit slope back canvas in choice of color.
  • Welded one piece bow rail bolted through the deck.
  • Two helm seats mounted on 24" cabinets.
  • Port helm seat hinges up to provide counter space.
  • Large storage pockets in cockpit.
  • Stern seating converts to berth with stern drive power.
  • Clear cockpit for fishing with outboard power.
  • Storage pocket next to passenger seat.

With every Monaro purchase, new or used, we will provide the owner with factory technical support for as long as you own the boat.

Option List

Every model has an extensive list of optional equipment available. If there is something you are looking for and don't see it on the list, ask us. It can probably be added. Engine options include gas or diesel stern drive or outboard. To view the option lists click on the links below.

Monaro 24 with stern drive power

Monaro 24 with outboard power
