After many years of offering the popular Monaro 24' there became a need for a slightly longer boat. We were asked to design and build a model with more cockpit space and load carrying capacity - therefore the Monaro 255 was born. Optionally powered with either twin 4 stroke outboards or gas or diesel stern drive, it has become a winner of a design. Being able to plane level at very low speeds, yet obtain optimum high speeds has really impressed the owners of the 255's. The recent redesigned galley, dinette and aft deck area has already caught the attention of many other power boaters.
Photo Gallery
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

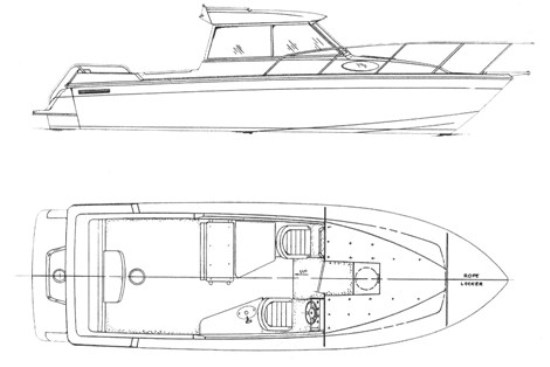

Line Drawings
Specifications
| Hull Length | 24'11" | 7.59 m |
| Overall Length | 25'7" | 7.80 m |
| Beam | 8'0" | 2.44 m |
| Draft to Keel | 20" | 0.51 m |
| Draft: Drive Down | 38" | 0.97 m |
| Deadrise Aft | 20 deg. | 20 deg. |
| Approx. Dry Weight | 4200 lbs. | 1,905 kg |
| Std. Fuel Tank | 45 imp. gal. | 205 l |
| Std. Water Tank | 8 imp. gal. | 36.4 l |
| Holding Tank | 7 imp. gal. | 31.8 l |
| Std. Engine | Volvo V8-300 SX | 224 kW |
| Min. Headroom in Cockpit | 6'5" | 1.96 m |
| Max. Headroom in Cockpit | 7'3" | 2.21 m |
| V-berth Length | 6'5" | 1.96 m |
Standard Equipment and Features
- 5 year structural waranty on hull.
- Vinylester resin skin coat in the hull layup to guard against water permeation.
- All hand laid fibreglass in hull, deck and all other fibreglass parts.
- Foam in cavity under floor.
- Generous storage below berth.
- Large opening hatch in cuddy for access and ventilation.
- High freeboard in cockpit for safety.
- Large chain and rope locker forward.
- Spacious shelves in cuddy.
- Very high visibility from helm.
- Wide side decks with hand rails on hard top for safe access to forward deck.
- Dual windshield wipers.
- Hard top fixed to windshield to keep rain and spray out.
- Extended hard top.
- Full length and higher windshield for increased headroom and visibility.
- Marine head.
- Custom fit camper back canvas in choice of color.
- Welded one piece bow rail bolted through the deck.
- Two helm seats mounted on 24" cabinets.
- Port helm seat hinges up to provide counter space.
- Large storage pockets in cockpit.
- Storage pocket next to passenger seat.
With every Monaro purchase, new or used, we will provide the owner with factory technical support for as long as you own the boat.
Option List
Every model has an extensive list of optional equipment available. If there is something you are looking for and don't see it on the list, ask us. It can probably be added. Engine options include gas or diesel stern drive or outboard. Click here to view the option list.
